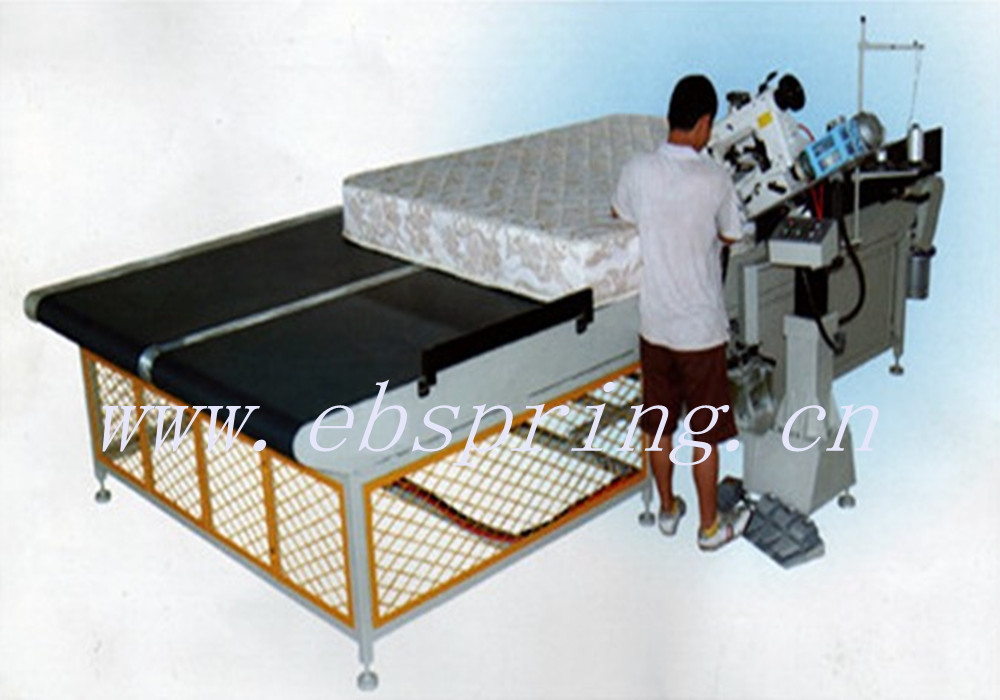

This machine is mainly used for mattress tape sewing.  The mian advance is sewing head need not moving, but the lifting machine can turn angles to sew mattress of different thickness. It is equipped with 300U chain sewing head and microcomputer controlling system imported from Japan. When producing, the conveyer can move forward. Backward, turning 90 degrees or 180 degrees to sew the whole mattress automatically.

Technical specification:

Work table size:4000*2000*800mm(adjustable)    Mattress thickness:150mm-600mm

Sewing speed: ≤9m/min(adjustable)                         Angle of sewing head:35 degress to 55 degree

Lifting range of sewing head:≤300mm(adjusted by motor)

Power Supply: 3 phrase 380V

Power of sewing motor: 0.37KW                                Power of lifting motor:0.37kw

Power of converyer:0.75kw x 2                                    Power of the push motor: 0.75kw

Air pressure:0.5-0.8mpa                                              Weight: 1350KG

Overall Dimension:4000x2600x1400mm
