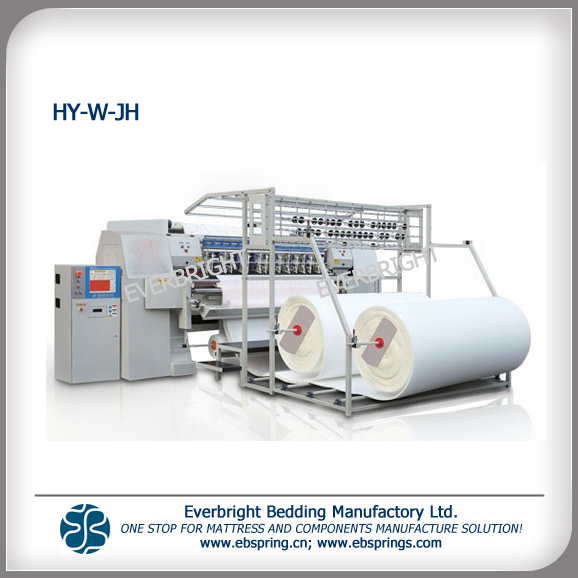

HY-W-JH Multi-needle Quilting Machine

Technical characteristics:

-CE certified

-Thread brake detector & Emergency safety devices.

-Automatic needle-lifting and CNC speed adjustment.

-Track & jump and independent patterns (360°and 180°patterns are available).

-Operated using high quality sealed bearings that do not need lubrication.

-Adjustable presser foot lifting mechanism enables to quit a broad range of material thickness.

-CAD pattern drawing, pattern system allows you to create your own designs.

-Production management function, easy for checking the production cost.

Technical Data (mm):

Width of quilting: 2450

Space between needle rows: 50.8, 76.2, 127(5”)76.2, 76.2, 152.4(6”)

Space between needles: 25.4

X-axis movement distance: 410

Thickness of quilting: ≤80(for all patterns)

Length of step: 3-8

Speed of production: 60~230(m/hour)

Model of needle: 24/180 23/160 22/140 21/130

Speed of main shaft: 200~980(RPM)

Power: 7KW

Power supply: 380V/50HZ 220V/60HZ

Gross weight: 4500kg

Dimension (LxWxH): 4800x1600x2000
